EVR 10 (032F1214)

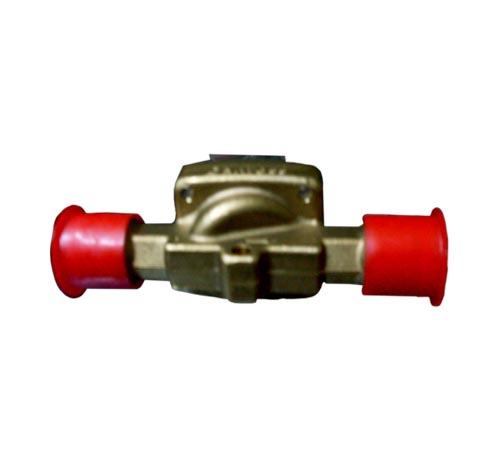

Valve điện từ DANFOSS EVR 10
Nhà sản xuất DANFOSS
GAS FREON
Size 5/8 IN

Tư vấn chọn sản phẩm

 0982 67 24 67
Characteristic Value
Type EVR 10
Weight 0.428 Kg
Ambient temperature -40 - 80 °C
Ambient temperature range [°F] -40 - 175 °F
Armature tube size 13,5 MM
Catalogue number RD.3A
Coil type None
Cv-value [USgal/min] 2,200
Direction Straightway
Function NC
Inlet size [mm] 16 MM
Inlet type SOLDER, ODF
Kv-value [m³/h] 1,900
Manual Operation No
Max. Working Pressure ef 35,0 bar
Max. Working Pressure 500 psig
Medium temperature range [°C] -40 - 105 °C
Medium temperature range [°F] -40 - 221 °F
Min. ODP [bar] 0,050 bar
MOPD [bar/psi] Coil Dependend
Orifice size 10,00
Outlet size [mm] 16 MM
Outlet type SOLDER, ODF
Pack format Multi pack
Quantity per pack format 12 pc
Refrigerant(s) CFC
Refrigerant(s) HCFC
Refrigerant(s) HFC
Standard product Yes
Type designation Solenoid valve, Solder
Không có tài liệu nào.
