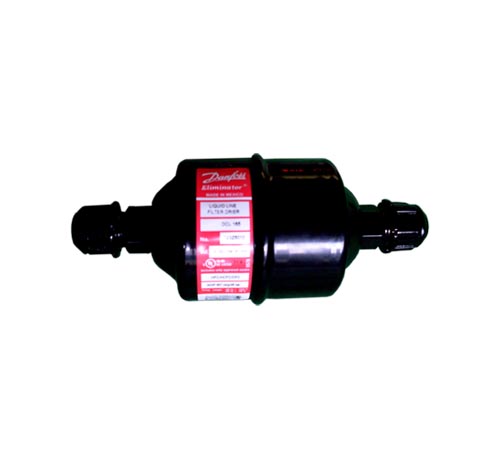

Phin lọc DANFOSS DCL 165

Phin lọc DANFOSS DCL 165
Phin lọc DANFOSS DCL 165
Nhà sản xuất DANFOSS

Tư vấn chọn sản phẩm


Yahoo - Chat với CongNghiepLanh Skype: Chat với congnghieplanh
 0982 67 24 67
Characteristic Value
Type DCL 165
Weight 0.818 Kg
Acid capacity [g] 3,12 g
Acid capacity [oz] 0,110 oz
Approval UL
Connection material STEEL
Core size 16 cu.in.
Felt mat/hole design 0
Inlet connection size [in] 5/8 IN
Inlet connection size [mm] 16 MM
Inlet connection type Flare
Max. Working Pressure ef 46,0 bar
Max. Working Pressure 667 psig
Net volume [fluid oz] 4,13 foz US
Net volume [l] 0,122 l
Outlet connection size [in] 5/8 IN
Outlet connection size [mm] 16,0 mm
Outlet connection type Flare
Pack format Multi pack
Product description Liquid line filter drier
Quantity per pack format 15 pc
Refrigerant(s) CFC
Refrigerant(s) HCFC
Refrigerant(s) HFC
Shell volume [foz US] 12,17 foz US
Shell volume [l] 0,36 l
Solid core surface [cm2] 220 cm2
Solid core volume [cm3] 234 cm3
Solid core surface [in2] 34,10 in2
Solid core volume [in3] 14,28 in3
Temperature range [°C] -40 - 70 °C
Temperature range [°F] -40 - 160 °F
Type designation DCL 165
