DANH MỤC SẢN PHẨM > Phin lọc

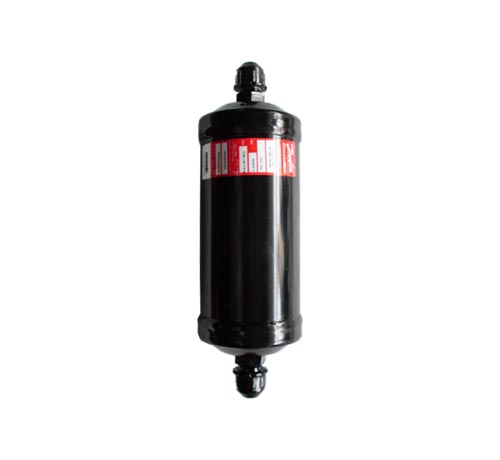

Phin lọc DANFOSS DCL 306

Phin lọc DANFOSS DCL 306
Phin lọc DANFOSS DCL 306
Nhà sản xuất DANFOSS

Tư vấn chọn sản phẩm


Yahoo - Chat với CongNghiepLanh Skype: Chat với congnghieplanh
 0982 67 24 67
Characteristic Value
Type DCL 306
Weight 1.634 Kg
Acid capacity [g] 6,40 g
Acid capacity [oz] 0,226 oz
Approval UL
Connection material STEEL
Core size 30 cu.in.
Felt mat/hole design 0
Inlet connection size [in] 3/4 IN
Inlet connection size [mm] 19 mm
Inlet connection type Flare
Max. Working Pressure ef 46,0 bar
Max. Working Pressure 667 psig
Net volume [fluid oz] 7,57 foz US
Net volume [l] 0,224 l
Outlet connection size [in] 3/4 IN
Outlet connection size [mm] 19,0 mm
Outlet connection type Flare
Pack format Multi pack
Product description Liquid line filter drier
Quantity per pack format 10 pc
Refrigerant(s) CFC
Refrigerant(s) HCFC
Refrigerant(s) HFC
Shell volume [foz US] 24,35 foz US
Shell volume [l] 0,72 l
Solid core surface [cm2] 378 cm2
Solid core volume [cm3] 494 cm3
Solid core surface [in2] 58,59 in2
Solid core volume [in3] 30,14 in3
Temperature range [°C] -40 - 70 °C
Temperature range [°F] -40 - 160 °F
Type designation DCL 306
Không có tài liệu nào.
