| DESCRIPTION |

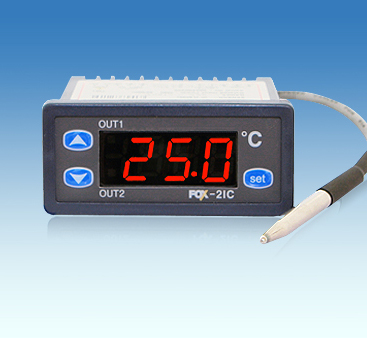

FOX-2IC |
| External Size(mm) |
77(W) × 35(H) × 77(D) |
| Operating Range |
-50.0~150.0 ℃ |
| Input Sensor |
IC(wire length:3M) * when use more than 100℃, the sensor should be demanded as a special order |
| Display Accuracy |
±1% rdg ± 1 digit |
| Output |
2relay(1C:250VAC 2A, 1a:250VAC 2A) |
| |
1R:Temp, 2R:Temp 2 or Time output |
| Control Method |
ON/OFF |
| Cutting Size(mm) |
71(W) × 29(H) |
| Power Supply |
220VAC 50/60Hz, {order production:110VAC 50/60Hz 12 or 24V AC/DC}±10% |
| Programming |
Set/Up/Down Key |
| Ambient Temp/Humi |
0~55℃(32~131℉), 35~80%RH |
| Weight(Include Box) |
285g |
| Functions |
output 1 : control for cooling & heating |
| |
output 2: 2nd temperature setting or time control function / lock function of programs |
| |
correction of the present temperature / output delay time |
