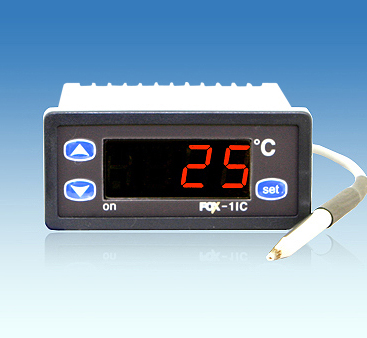

Thiết bị điều khiển nhiệt độ FOX-1IC

0982 67 24 67

DESCRIPTION	FOX-1IC
External Size(mm)	77(W) × 35(H) × 77(D)
Operating Range	-50~150 ℃
Input Sensor	IC(wire length:3M) * when use more than 100℃, the sensor should be demanded as a special order
Display Accuracy	±1% rdg ± 1 digit
Output	1relay(1C) 250VAC 2A
Control Method	ON/OFF
Cutting Size(mm)	71(W) × 29(H)
Power Supply	220VAC 50/60Hz, {order production:110VAC 50/60Hz 12 or 24V AC/DC}±10%
Programming	Set/Up/Down Key
Ambient Temp/Humi	0~55℃(32~131℉), 35~80%RH
Weight(Include Box)	280g
Functions	Setting function for the highest & lowest limit of temperature range
	correction of the present temperature / output delay time
